Planform is a lightweight and fast pdf solution for construction,measure,mark up,OCR, Convertand manage pdf drawings. Works both for Windows and Mac PC
Treat it as a magic toolbox made for professionals like you.
When organizing documents, you can freely Combine, split, extract, delete, and insert PDF files; it can also auto create bookmarks for easy reference; if you encounter a PDF file that cannot be searched, it can help you to convert into a searchable PDF for easy retrieval.
For format conversion, you can choose from PDF to CAD, Image to PDF, and vice versa.
You may also copy drawing annotations, batch extract text, or tables, thereby significantly boosting your work performance.

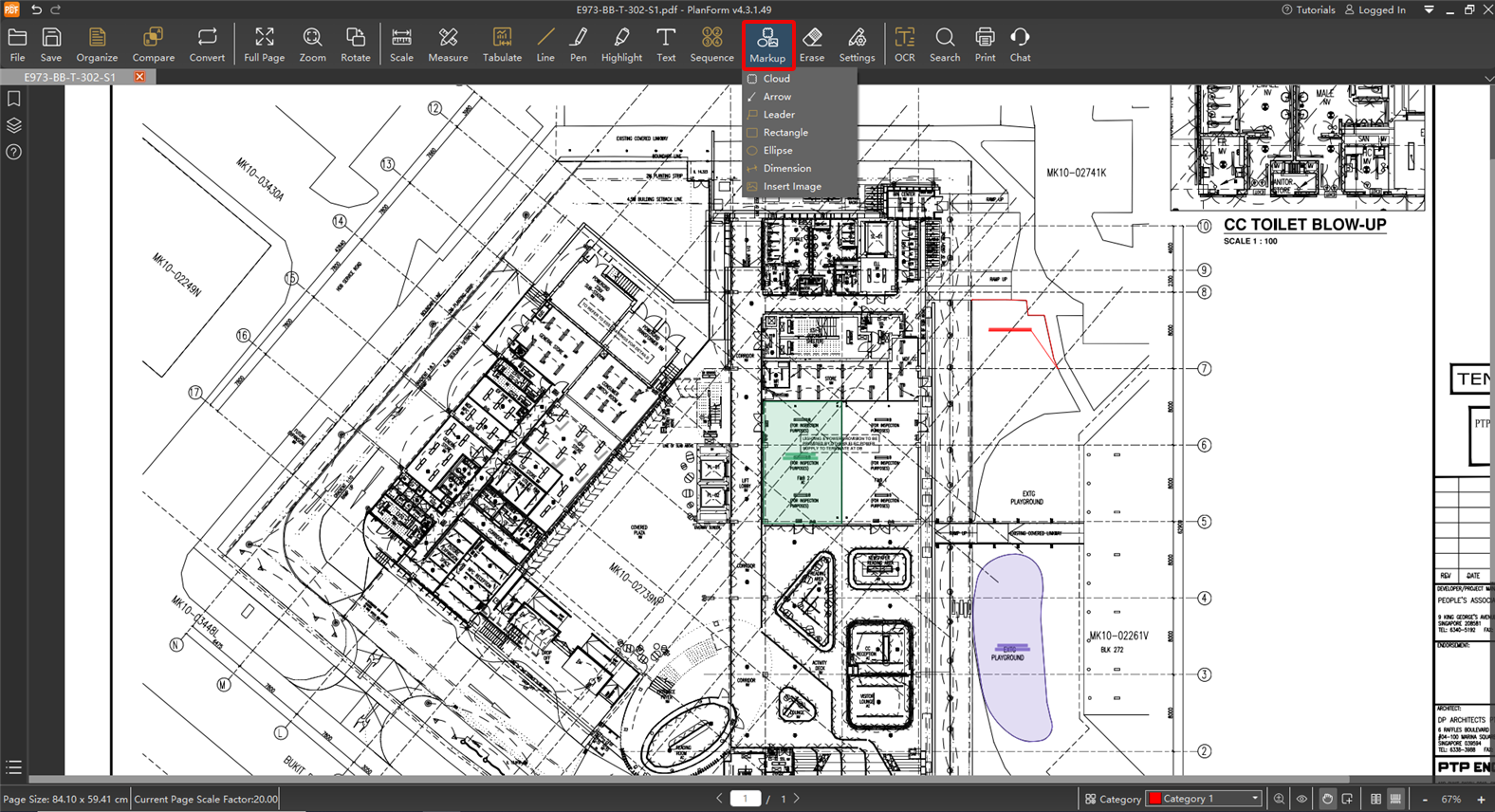

When reviewing drawings, you can use customized tools to mark up PDFs, tailored to meet the needs of every industry.
Automatic sequential numbering with prefix, border shape, leadline. Erase content freely. Use different markups to highlight the important part.

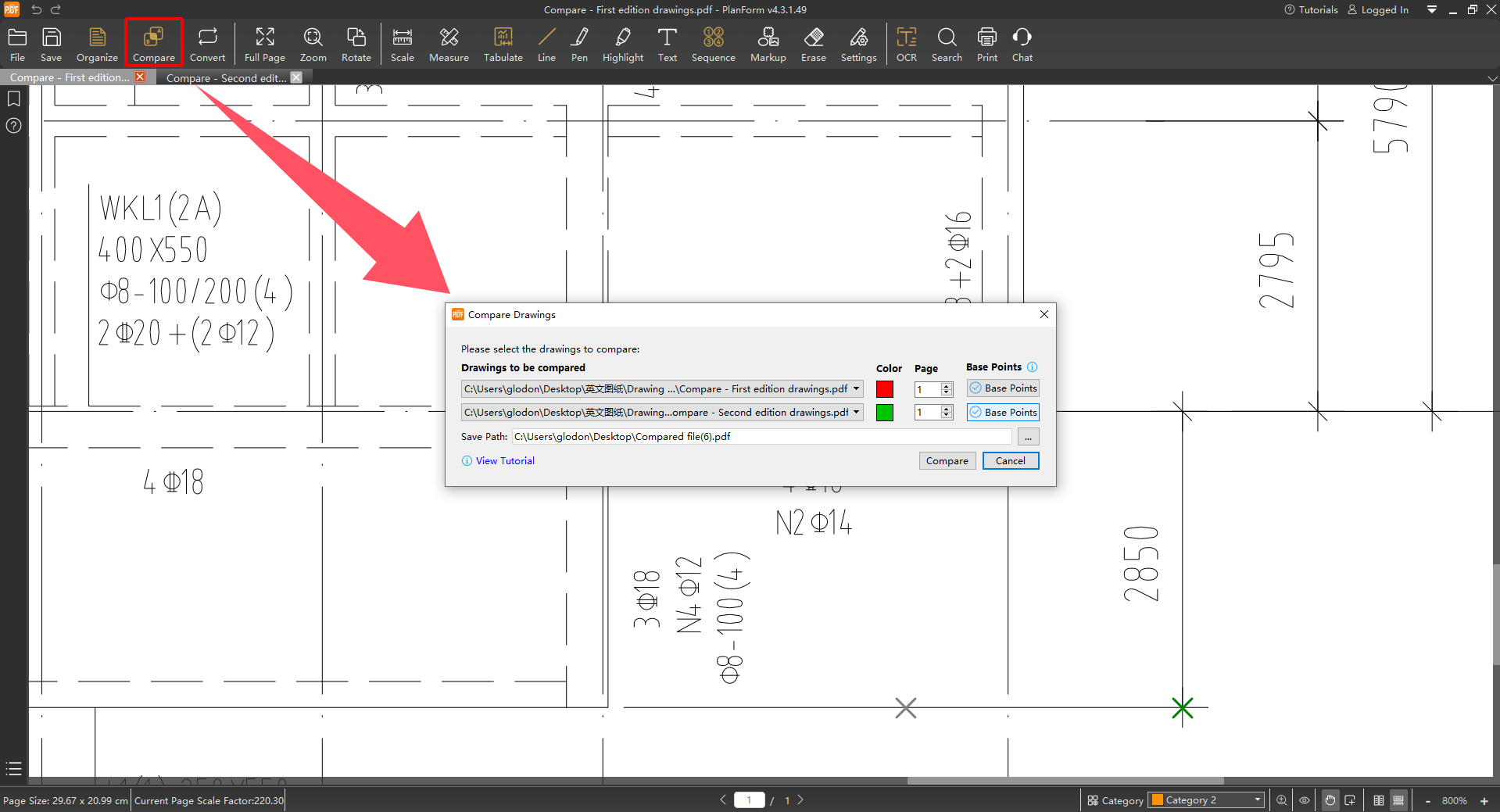

When design changes occur, with Planform, you can compare drawings by overlapping 2 pages of PDF. doubling your efficiency in drawing review.
easy to measure and tabulate.
Adjust the scale to the actual size
Measure length, area, and quantity in a variety of ways.
Measurements tabulation for easy summary and organization.
Seller
Beijing Honghu Yuntu TechnologyProduct Description
Planform is a lightweight and fast pdf solution for construction,measure,mark up,and manage pdf drawings.has a wide range of applications in engineering cost management (budgeting and cost control), Below are its core use cases and advantages:
1. Quantity Takeoff and Measurement
① easy to measure and tabulate：
Measure length, area, and quantity in a variety of ways on PDF drawings to quickly tabulate material quantities (e.g., concrete, rebar, piping, etc.).

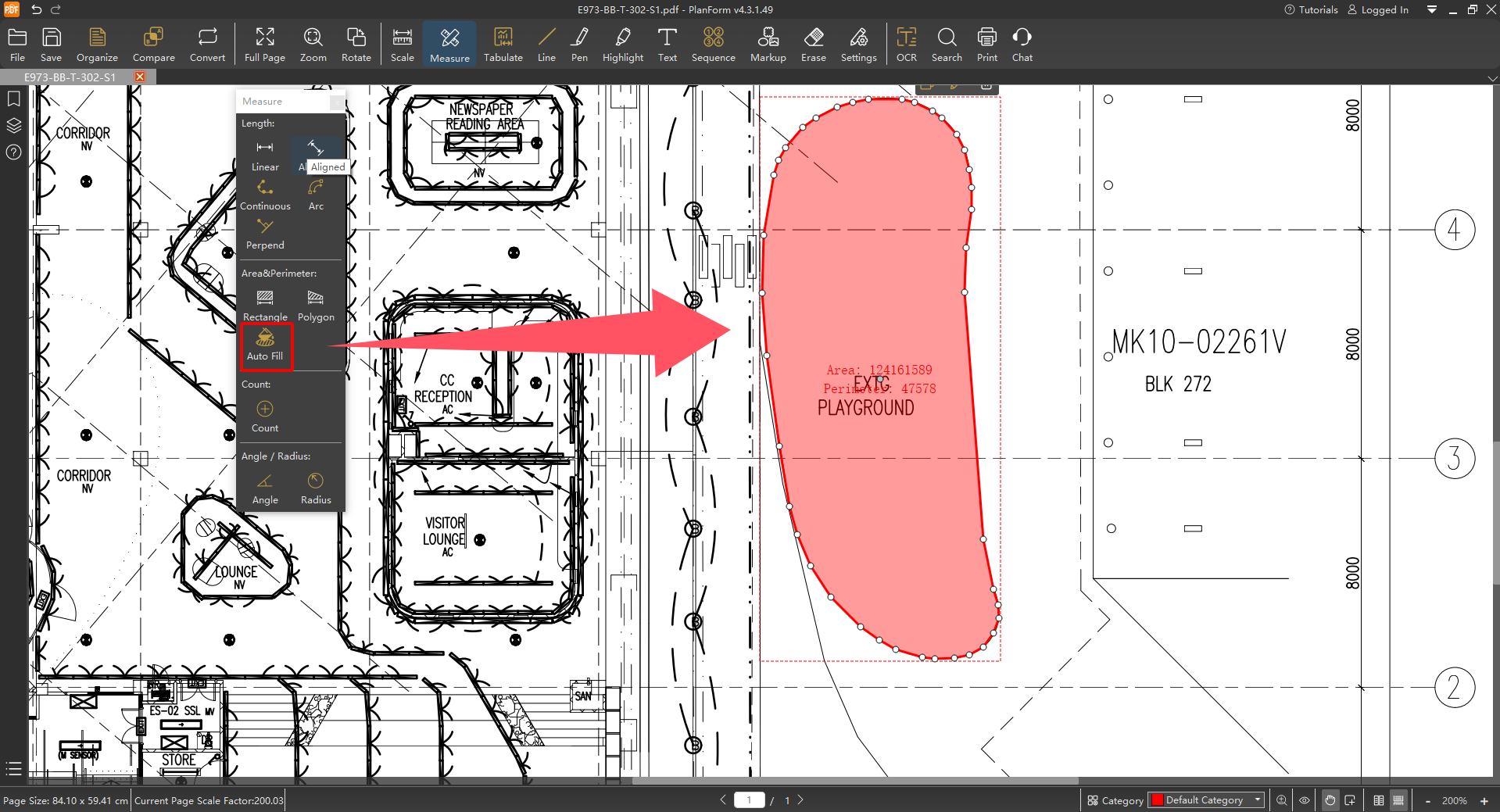

Use the Auto Fill Tool to automatically calculate repetitive quantities such as paving areas and wall finishes.
② Category:
Categorize markups to efficiently summarize quantities for different trades (civil, MEP, finishes) for further consolidation.
Supports data export to Excel.
2. Drawing Comparison & Version Control
Multi-version Drawing Comparison:
Overlay different versions of construction drawings (e.g., initial vs. revised) and highlight differences in distinct colors to avoid missing cost impacts from changes.
Identify the effect of design changes on costs (e.g., wall position adjustments, material substitutions).
3. Cost Estimation & Quoting
Markup & Annotation:
Directly annotate material unit prices, labor rates, and other cost details on drawings, linking measurements to generate preliminary quotes.
4. Progress Tracking & Cost Monitoring
Progress Marking:
Mark completed areas on construction drawings (e.g., "1F Rebar Completed") and compare actual costs against the budget.
Use image insertion to document on-site changes as evidence for claims or final accounts.
