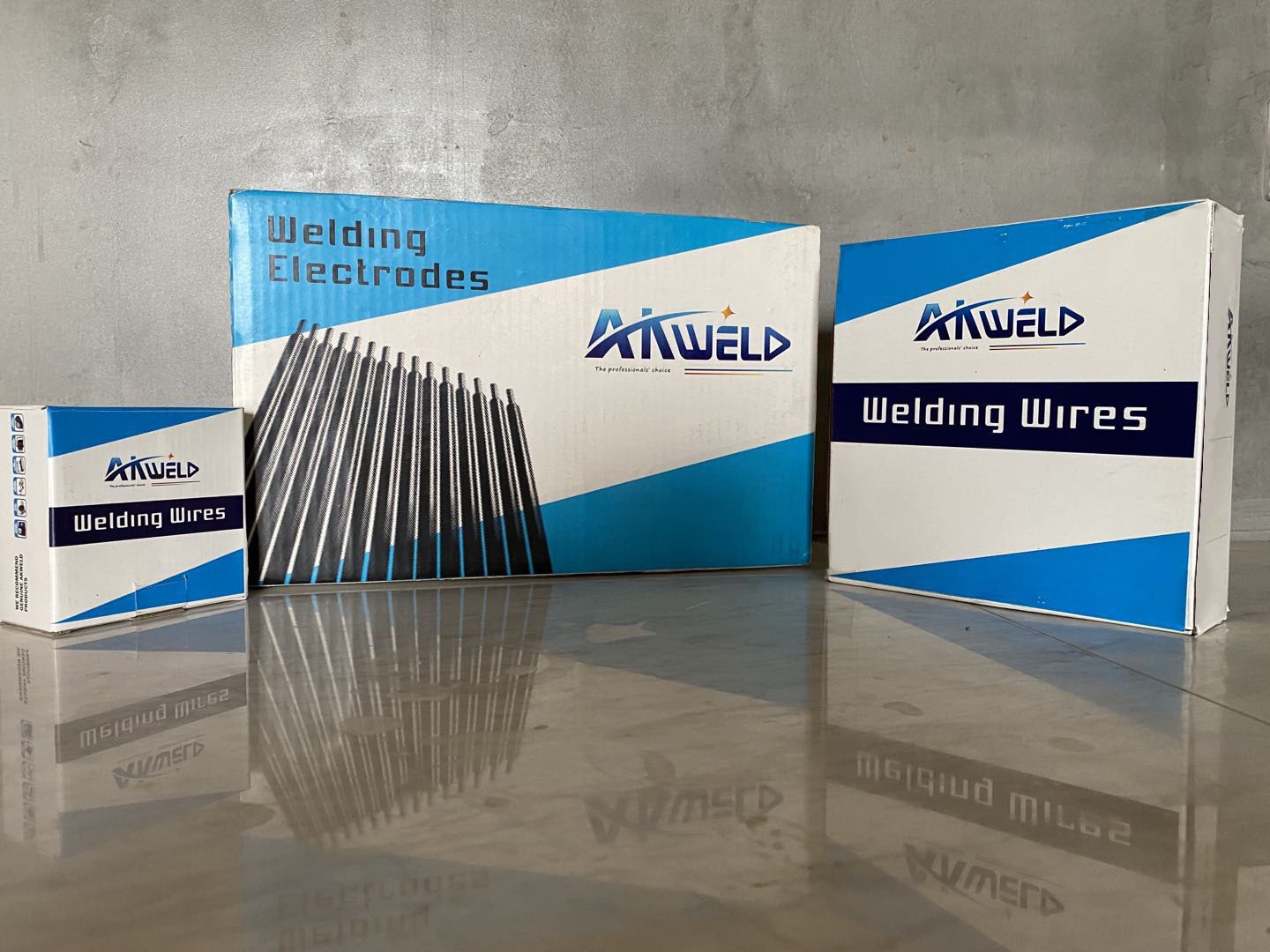

welding electrode

1 review

E6013 AWS A5.1 E6013 ISO2560-A-E38 0 R1 12 GB/T 5117 E4313 Approved by: ABS CCS LR CE Description: It is a rutile type general purpose electrode for all positional welding. Suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass. AC & DC. Welding Position: Diameters: 1.6mm,2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm. Typical Mechanical Properties: Tensile strength(MPa): 490 Yield stress(MPa): 396 Elongation (%): 26 Impact values(≥47J/-20℃): 82 Typical Chemical Compositon: C Mn P S Si Ni Cr Mo V 0.08 0.43 0.026 0.021 0.21 0.04 0.011 0.007 0.009 Welding Current: (AC/DC+) Diameter(mm) 2.5 3.2 4.0 5.0 Current/A F/H 60-90 80-130 150-190 180-250 Current/A V/OH 50-80 80-110 130-170 -- Note: No need to bake before using, but please bake 30-60 minutes in 150℃ if the electrodes is humid.
